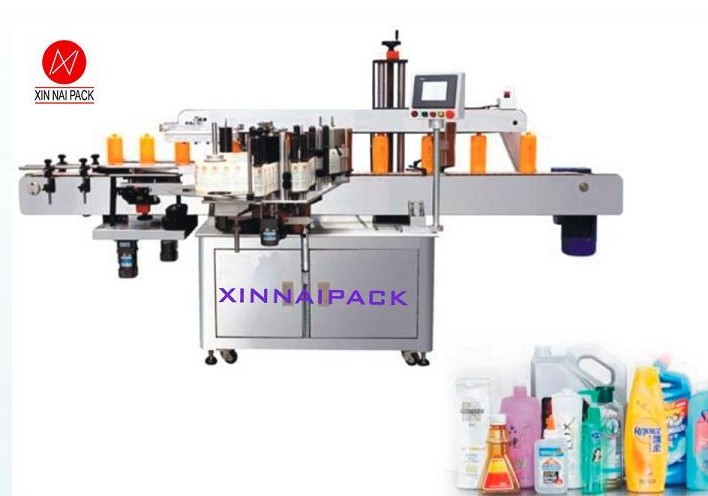

■Double Sides Automatic labelling Machine is suitable for label lesser height of square , round , and flat bottles.front label and back label can be finished at the same time,you can also choose label single side or double sides
■ink jet printer can be customized installing

■This machine can using single label, and also can using with other packing machinery for automatic produce on line.
technic paramter：
■ Machine Size) 2800(L)×1650(W)×1500(H)mm
■Output Speeed) 60-350pcs/min

■ Hight Label Object:30-350mm
■ Thickly Label object:20-120mm
■ Label Hight: 5-180mm
■Label Length:25-300mm
■ Pastes the sign precision:±1mm

■ Roll inside:76mm
■ Roll Outside Diameter:420mm
■Power Supply:single phase 220V 50/60HZ 3.5KW
■printer using air supply：5Kg/c㎡

■ weight：450Kg
matching products:

■high speed hot steel letters pringting machine(max speed can be 400 bottles/min)

■ink jet printer(max speed is 400 bottles/min)

■transparent lable monitor
 Consumables

■synchronous belt

■opper letter/steel letter

■self-adhesive label



■The machine is made of  SUS304 stainless steel and senior aluminum alloy

■  labeling head adopts imported stepper motor or servo motor, ensuring labeling speed and accuracy

■  all the photoelectric and control systems import high-end products from Germany, Japan and Taiwan

■  PLC man-machine interface control to make operation concisly

Note:this machine is our standard machine,special design can be made according to customer’s demand
